60/70 Bitumen
Definition: It is a kind of bitumen, which is provided during the process of oxidation of vacuum bottom (the bitumen production feedstock that derives from distillation tower residue in vacuum oil refineries) at bitumen production units. In a manner that its penetration point (kind of test to indicate the hardness of bitumen) becomes between 60-70.
BITUMEN 60/70 | ||
Characteristic | Value | Test Method |
Specific Gravity @ 25/25 c | 1.01-1.06 | ASTM D-70 |
Penetration @ 25 c | 60-70 | ASTM D-5 |
Softening Point c | 49-56 | ASTM D-36 |
Ductility @ 25 c | 100 min | ASTM D-113 |
Loss on Heating %wt | 0.2 max | ASTM D-6 |
Drop in Penetration after Heating % | 20 max | ASTM D-6 & D-5 |
Flash Point c | 250 min | ASTM D-92 |
Solubility in CS2 %WT | 99.5 min | ASTM D-4 |
Spot Test | negative | A.A.S.H.O.T.102* |
85/100 Bitumen
Definition: It`s kind of bitumen which is provided during the process of oxidation of vacuum bottom (the bitumen production feedstock that derives from distillation tower residue in vacuum oil refineries) at bitumen production units. In which its penetration point (kind of test to indicate the hardness of bitumen) becomes between 85-100
BITUMEN 85/100 | ||
Characteristic | Value | Test Method |
Specific Gravity @ 25/25 c | 1.01-1.05 | ASTM D-70 |
Penetration @ 25 c | 85-100 | ASTM D-5 |
Softening Point c | 45-52 | ASTM D-36 |
Ductility @ 25 c | 100 min | ASTM D-113 |
Loss on Heating %wt | 0.5 max | ASTM D-6 |
Drop in Penetration after Heating % | 20 max | ASTM D-6 & D-5 |
Flash Point c | 225 min | ASTM D-92 |
Solubility in CS2 %WT | 99.5 min | ASTM D-4 |
Organic Matter Insoluble in CS2 | 0.2 max | ASTM D-4 |
Spot Test | negative | A.A.S.H.O.T.102* |
Usage: The main common usage of this product is in road making at cold regions
40/50 Bitumen
Definition: It is a kind of bitumen, which is provided during the process of oxidation of vacuum bottom (the bitumen production feedstock that derives from distillation tower residue in vacuum oil refineries) at bitumen production units. In a manner that its penetration point (kind of test to indicate the hardness of bitumen) becomes between 40-50
Bitumen 40/50 | ||
Characteristic | Value | Test Method |
Specific gravity @25/25 C | 1.01-1.06 | ASTM D-70 |
Penetration @25 C | 40/50 | ASTM D-5 |
Softening Point c | 52/60 | ASTM D-36 |
Ductility @ 25 c | 100 min | ASTM D-113 |
Loss on Heating %wt | 0.2 max | ASTM D-6 |
Drop in Penetration after Heating % | 20 max | ASTM D-6 & D-5 |
Flash Point c | 250 min | ASTM D-92 |
Solubility in CS2 %WT | 99.5 min | ASTM D-4 |
Spot Test | negative | A.A.S.H.O.T.102* |
Usage: The main common usage of this product is to use in road making at tropical regions
85/25 Bitumen
Definition: at the bitumen production reactor, during the air acting, the mixture of the two Vacuum Bottom (VB) and Vacuum Silabes (VS) feedstock is put under a special degree of pressure and temperature between 200-300˚C of which the hydrogen atoms content in bitumen molecular oxidize to oxygen of air, and obtains with higher hydrocarbons polymerization reaction that has lower penetration and higher softening points than the primary pure bitumen. This kind of bitumen has the softening point of 85 and permeability of 25
Bitumen R85/25 | ||
Characteristic | Value | Test Method |
Specific gravity @25/25 C | 1.05 approx | ASTM D-70 |
Penetration @25 C | 20/30 | ASTM D-5 |
Softening Point c | 80/90 | ASTM D-36 |
Ductility @ 25 c | 3 min | ASTM D-113 |
Loss on Heating %wt | 0.2 max | ASTM D-6 |
Drop in Penetration after Heating % | 20 max | ASTM D-6 & D-5 |
Flash Point c | 225 max | ASTM D-92 |
Solubility in CS2 %WT | 99 min | ASTM D-4 |
Usage: Floor covering water channels- the concrete surface cracking- to sew up the concrete surface- for other construction works- producing moisture insulation types
90/15 Bitumen
Definition : at the bitumen production reactor, during the air acting, the mixture of the two Vacuum Bottom (VB) and Vacuum Silabes (VS) feedstock pressed under a special and temperature pressure between 200-300˚C of which the hydrogen atoms content in bitumen molecular oxidize to oxygen of air, and obtains with higher hydrocarbons polymerization reaction that has lower penetration and bigger softening points rather than the primary pure bitumen. This kind of bitumen has the softening point of 90 and permeability of 15.
Bitumen R90/15 | ||
Characteristic | Value | Test Method |
Specific gravity @25/25 C | 1.05 approx | ASTM D-70 |
Penetration @25 C | 10/20 | ASTM D-5 |
Softening Point c | 85/95 | ASTM D-36 |
Ductility @ 25 c | 1.5 min | ASTM D-113 |
Loss on Heating %wt | 0.2 max | ASTM D-6 |
Flash Point c | 225 max | ASTM D-92 |
Solubility in CS2 %WT | 99 min | ASTM D-4 |
Usage: Covering of the floor of water channels- the concrete surface cracks- to cover the cracks in the concrete surface- for other construction works- producing different types of moisture insulation
MC/250 Bitumen
Definition: mc250 bitumen is a type of dissolved bitumen. To produce this type, solvent oils such as Kerosene are used in order to change bitumen into dissolved bitumen or liquid pitch, so that, during consumption process, the solvent oil evaporates and the bitumen residue to obtain the desirable adhesion
Bitumen MC-250 | ||
Characteristic | Value | Test Method |
Kinematic Viscosity @ 60 c, cst | 250-500 | ASTM D-2170 |
Flash Point(tag open-cup) c | 66 min | ASTM D-3143 |
Water Content % vol | 0.2 max | ASTM D-95 |
Distillate @ 360 c % vol 225 c 260 c 315 c |
10 max 15-55 60-87 |
ASTM D-402 |
Residue Bitumen from Distillation @ 360 | 67 min | ASTM D-402 |
Test on Residue Bitumen from Distillation: | ||
Penetration @25 C | 120-250 | ASTM D-5 |
Ductility @ 25 c | 100 min | ASTM D-113 |
Solubility in trichloroethylene %WT | 99 min | ASTM D-2042 |
Usage: This type of bitumenis most commonly used as an adhesive material between road foundation and asphalt coating, in road construction industries, which include superstructure and foundation
Nowadays the usage of this type declines because of its replacement with the water base bitumen like bitumen emulsion, which performs better, while eliminating the dangerous environmental impacts
Packing:
Bulk

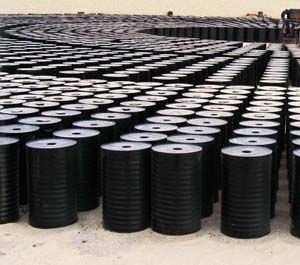

New Steel Drum
Poly Bag
Iran as one of the biggest exporter of bitumen, and one of the biggest bitumen supplier located in Middle East.
Two well known brands of bitumen suppliers can be mentioned Jey Bitumen and Pasargad bitumen. For Most famous grades of bitumen known as Bitumen 60-70, bitumen 85-100. We as F.R.S are supplier of jey refinery bitumen and pasrgad refinery bitumen.
Global market share of Jey refinery is more than 10%. And we as the bitumen supplier wholesaler have small share of this market, and can be trustable bitumen exporter of Iran bitumen.
Iran Bitumen price announced by Iran Stock market weekly bases.
For bitumen usage we can mentioned for road industries ad roofing material.
